Description

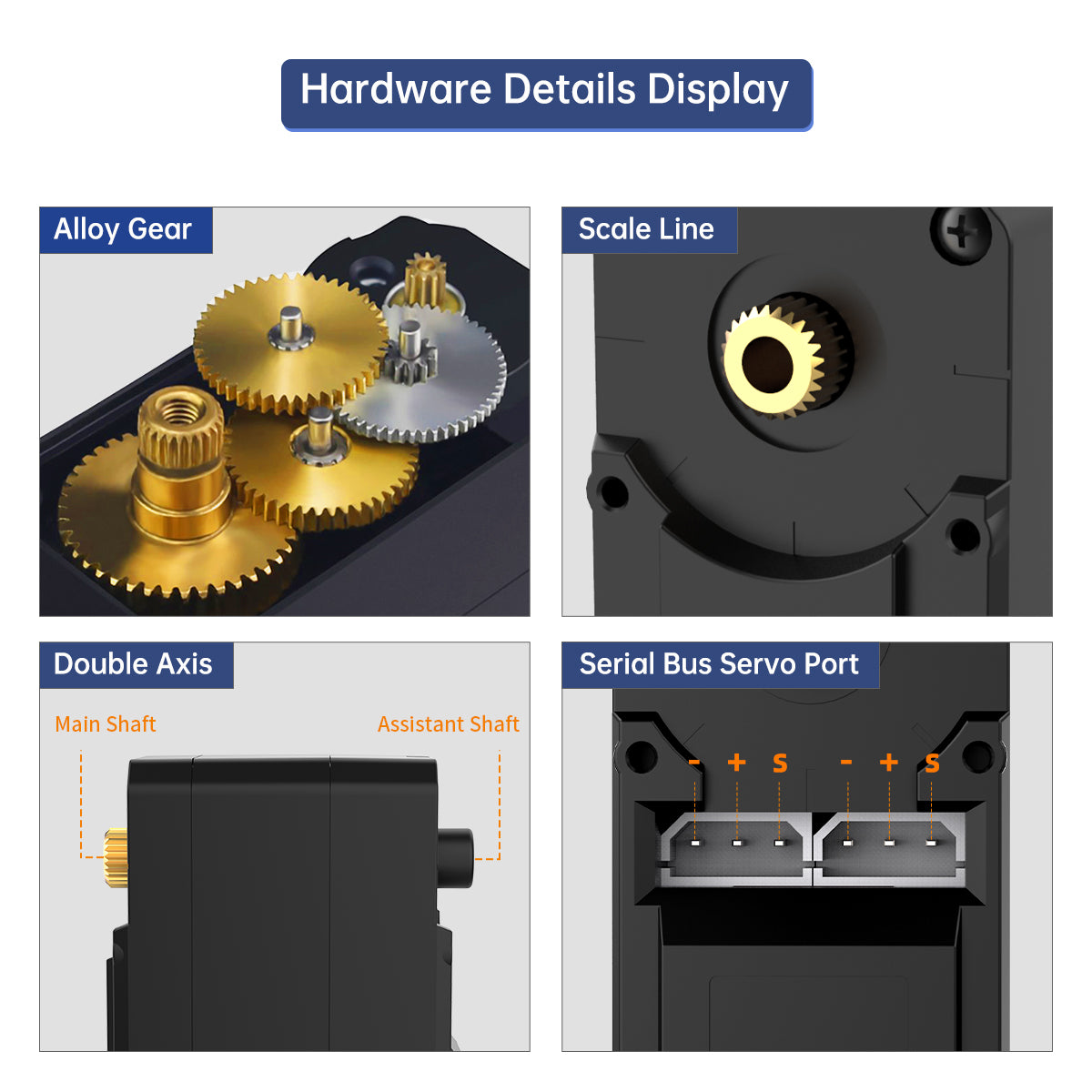

gear servo Hiwonder LX-16A Full Metal Gear Serial Bus Servo with Real-Time Feedback Function for RC Robot( Control Angle 240)Product Description LX 16A is a full metal gear serial bus servo with high torque. It can provide temperature, position feedback. LX 16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL USB debug board (compatible for Arduino) to control bus servo. Packing List 1*LX 16A servo 1*Plastic main servo horn 1*Plastic assistant servo horn 1*Servo wire(200mm) 1*Screw package Weight 54g Dimension 45. 22 x 24. 72 x 36. 3 mm
Product Description
LX-16A is a full metal gear serial bus servo with high torque. It can provide temperature, position feedback. LX-16A Bus Servo uses our private serial protocol so that it is necessary to use our TTL/USB debug board (compatible for Arduino) to control bus servo.
Packing List
- 1*LX-16A servo
- 1*Plastic main servo horn
- 1*Plastic assistant servo horn
- 1*Servo wire(200mm)
- 1*Screw package
| Weight | 54g |
| Dimension | 45.22 x 24.72 x 36.3 mm |
| Speed | 0.19sec/60°7.4V |
| Servo accuracy | 0.3° |
| Torque | 17kg.cm 6V; 20kg.cm 7.4V |
| Stall Current | 1.1~1.9A |
| Working voltage | 6-8.4V |
| Servo ID | 0~253 |
| Readback function | Support angle readback |
| Wire length | 200mm |
| Rotation | 0-240° |
| No-load current | 100mA |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Protection | Avoid stalling and overheat |
| Data feedback | Temperature, Voltage, Position |
| Indicator | LED |
| Working mode | Servo mode and deceleration motor mode |
| Storage | Save data when the power off |
| Gear | Metal |
Bus Servo Communication
The user can set and assign an ID number to each servo, and use the controller to issue instructions to make the servo perform actions according to the instructions.
High Torque and Strong Power
The servo has a maximum torque of 19.5kg.cm 7.4V, which is powerful and gives your robot plenty of power.
High Quality Potentiometer
The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.
Intelligent Feedback and Two Working Modes
The servo supports servo mode and reduction motor mode, and has position, temperature and voltage feedback to protect the normal operation of the servo.
Specifications
| Item | Specification |
| Weight | 53g |
| Dimension | 45.22*24.72*36.3mm |
| Speed | 0.19sec/60°7.4V |
| Servo accuracy | 0.3° |
| Torque | 17kg.cm 6V; 20kg.cm 7.4V |
| Stall Current | 1.1~1.9A |
| Working voltage | 6-8.4V |
| Servo ID | 0~253 |
| Readback function | Supports angle readback |
| Wire length | 200mm |
| Rotation | 0-240° |
| No-load current | 100mA |
| Control method | UART serial command |
| Communication baud rate | 115200 |
| Protection | Avoid stalling and overheat |
| Storage | Save data when the power off |
| Data feedback | Temperature, Voltage, Position |
| Indicator | LED |
| Working mode | Servo mode and deceleration motor mode |
| Gear | Metal |
